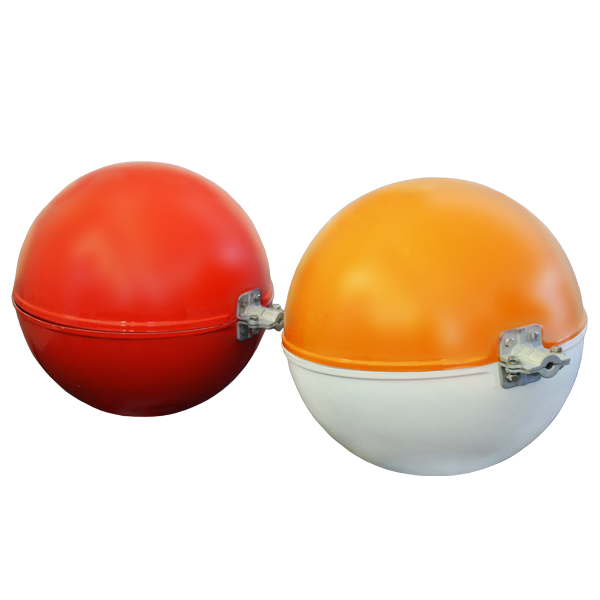

Marker Ball
Marker balls for day marking of rope-shaped obstacles, such as overhead lines, cable cars and all types of tensioning cables. The procandela ball markers meet the international requirements of AVV and ICAO Annex 14, 4th Edition and are available in different color combinations.
Technical Data
Cable diameter: 8 – 55mm
Voltage range: max. 1.000kV
Color options: traffic red, traffic orange, white, red / white, orange / white
Material: glass fiber reinforced plastic; Cable clamp made of aluminum alloy
Dimensions: Ø 600mm, 760mm
Weight: 6.9 kg
Accessories: protective bars
Features
- High voltage resistant up to 1.000KV
- various color options available
- easy installation
- durable corrosion-resistant design
