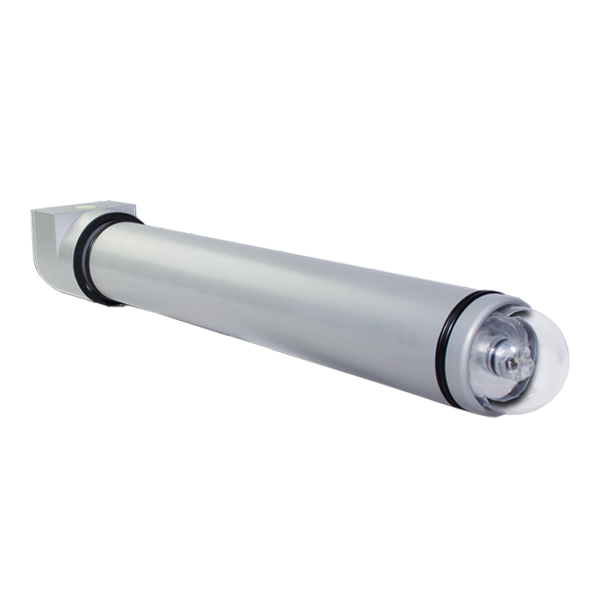

ETL03-H-N2

Procandela beaconing offers multiple solutions for every operating site and use case. We secure the airspace sustainably, reliably and cost-optimized with the most modern technology.

To mark towers, supplement gondola marking or for marking other aviation obstacles, obstacle beacons in low-intensity range are needed.

Effective luminous: 10cd, 32cd, 50cd

Illuminants: 3 LEDs, red

Power comsumtion: 1,2W, 2,5W, 4W

Dimensions: Diameter 50 x 402 mm

Weight: 1,0kg

Emission: >180°

Approval: AVV; Obstruction light ES, ICAO low-intensity type A, ICAO low-intensity type B

Features

  • Aluminium, seawater-resistant, anodised
  • Simple installation
  • Integrated fault contact facilitates fault monitoring
  • Low power consumption
  • Construction form specifically designed for concrete towers as a push-through variation
