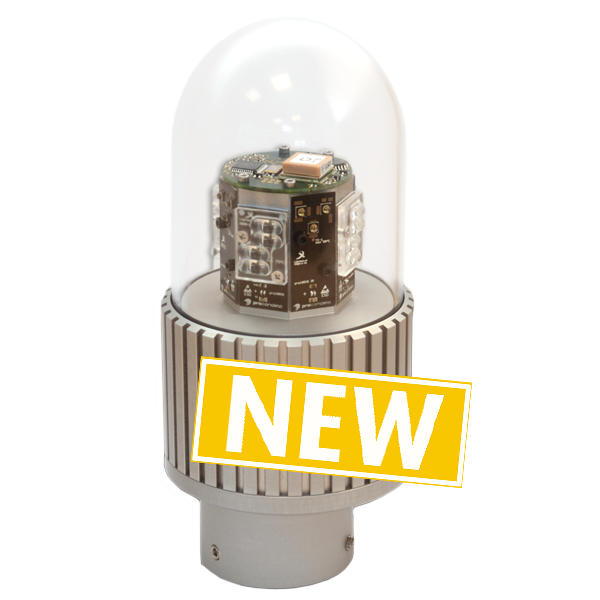

proXS-IR
Procandela beaconing offers multiple solutions for every operating site and use case. We secure the airspace sustainably, reliably and cost-optimized with the most modern technology.
Obstacle beacons are required to mark towers, supplement gondola marking or for marking other aviation obstacles.
All infrared beacons operate with a wavelength of 850nm, marking them ideally suitable for the use of night vision devices.
Technical data
Effective luminous: 25mW/sr to 600 mW/s
Illuminants: 12 LEDs, infrared
Wavelength: 850 nm
Power consumption: < 20W
Dimensions: Diameter 100 x 220 mm
Weight: 1,0 kg
Approval: Trafi, MOD
Features
- Aluminium, seawater-resistant, anodised
- Various installation options available: Screw fixing with flange, magnet fixing, special solutions etc.
- Simple installation
- Integrated fault contact facilitates fault monitoring
- Low power consumption
